‘@ POCKET-TOP HEMMER@U-2711-E@‘

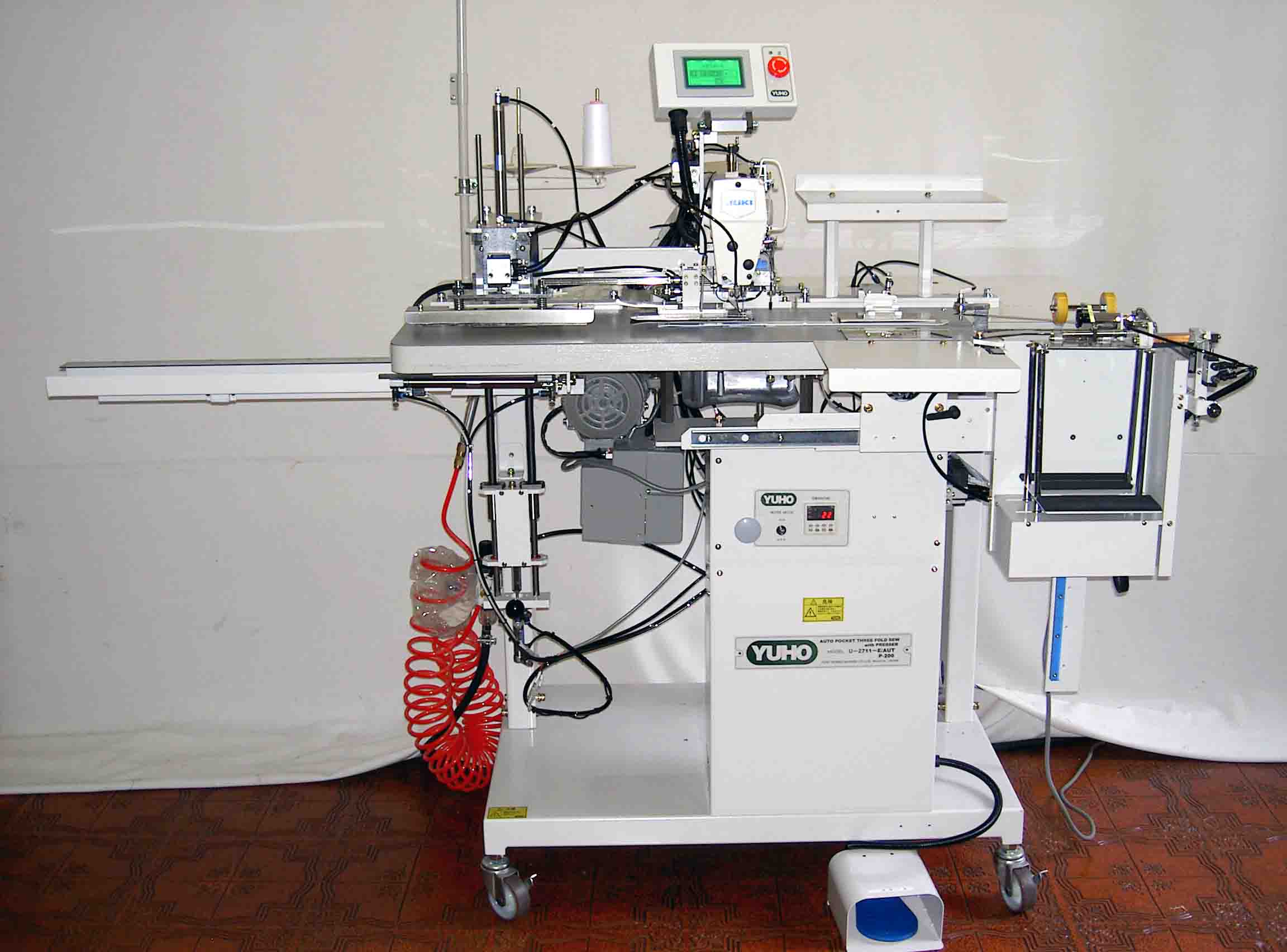

‘@ AUTO POCKET-TOP HEMMER@U-2711-E/AUT@‘
| |
SHIRT POCKET 3 - FOLDING ROBOT !!
FULL-AUTOMATIZED POCKET-MOUTH 3 - FOLD SEWING IS NOW DEBUT ON !!
BIAS POCKET MOUTH 3-FOLD HEMMING IS ALSO ALLOWED AUTOMATICALLY !!.
AUTO HEAT PRESSING IS ALSO AVAILABLE !
| FULL AUTOMATIZED POCKET TOP 3-FOLD HEMMING | Just enough to load a pocket-pieceA3-Folding, sewing, pressing and stacking
are sequenced automatically. Aslo, available matching plaids to the bias cloth without twisting. Simply conversion of hemming width pattern is available. |
| CONSISTENT 3-FOLD STITCHING | With presser pat, 3-folded pocket is fed under the needle and sewn consistently. Against bias or stretchy fabrics, bottom-feeding mode (synchronized with top-feeding) promises free from twisting completely. |
| 3-FOLD GAUGE CONVERTIBLE SIMPLY HEMMING LENGTH & WIDTH |
With sliding plate, suspendng presser, folding plates ( Left/Right ) folding
air, pocket piece is fed on automatically is 3-folded accurately. This promises an accurate 3-fold hemming consistently even if the bias fabrics. Folding length Max : 150o, Width : 8o ` 30o |
| AUTO HEAT PRESSER | Additionally, auto heat presser is accessoried heat pressing after 3 -
fold hemming automatically. This can omit iron pressing work. Heat pressing temperature, time are adjustable according to the fabrics freely. |
| STABLE STACKING & PICKING | Pressed pocket piece is dropped down and stacked on the stacker completely. With feeder, pocket pieces are fed to the stacker case every 50 pcs. Stacker case keeps by 250pcs. Picking out is allowed at any time with button pushing when requested. |
| AUTO FABRIC LOADER | Auto fabric loader is flexible to the pocket shapes and sizes freely. Pocket guide-bar location is variable according to the shapes and the sizes. Pocket-piece loading is just enough to face a pocket-top edge to the auto fabric loader face accurately. Max. loading height upto 180o. |
| MANUAL FABRIC LOADER | Manual fabric loader is also available, when automatic fabric loading is not alloowed. |
| LED TOUCH PANEL DISPLAY | With LED touch panel, availalable to "ENTER and ADJUSTMENT" to
all of the devices are programmable and controlled simply. AUTO/MANUAL fabric loader is convertible freely. |
| FEEDER WITH ADHESIVE TAPE CLAMPER | With twin rolled tape adhesive clamping mechanism promises the highest
reliability. Tape face is picket up by 0.2o every adhesive rolled-tape clamping mechanism is gives the most reliablity. Twin-rolled 10o wide adhesive tape is accessoried. Tape face is picked by 0.2o every feeding and rolled up automatically. This promises a new fabric is picked up with newly all the time. |
| FEEDING FLEXIBILITY ACCORDING TO POCKET-SIZE & HEMMING WIDTH | Adhesive rolled-tape clamper locaition is adjustable freely according to the pocket-sizes from 70o ` 150o. Feeding is also adjustable according to the hemming width freely. Large variation is available according to the pocket-size and hemming width flexibly. |
| SAFETY SEWING ROBOT | When fabric is finished to be picked up or two fabrics is picked up at
one time by error or T.B.D. detects on, LED error (red) is displayed, and
makes emergency stop. When bobbin counter comes up 0 , LED error "bobbin shortage" (red) is displayed., and makes emergency stop. |
| MAINTENANCE | Simply sewing head tilting, operation checking step by step are applied
completely. Highly reliability for maintenance is applied completely. |
| DAILY OUTPUT | @@1 cycle 9 sec.@@ 2,500 pieces / 8H (20% allowance) |
|---|---|
| MAIN DEVICES | @@Auto loader & feeder @@Manual loader @@Machine feed - dog @@Bobbin counter @@Auto heat presser @@Machine presser @@Stacker & case @@Air gun @@Thread Breakage Detector ( T.B.D ) @<OPTION> @@Bobbin winder@<OPTION> |
