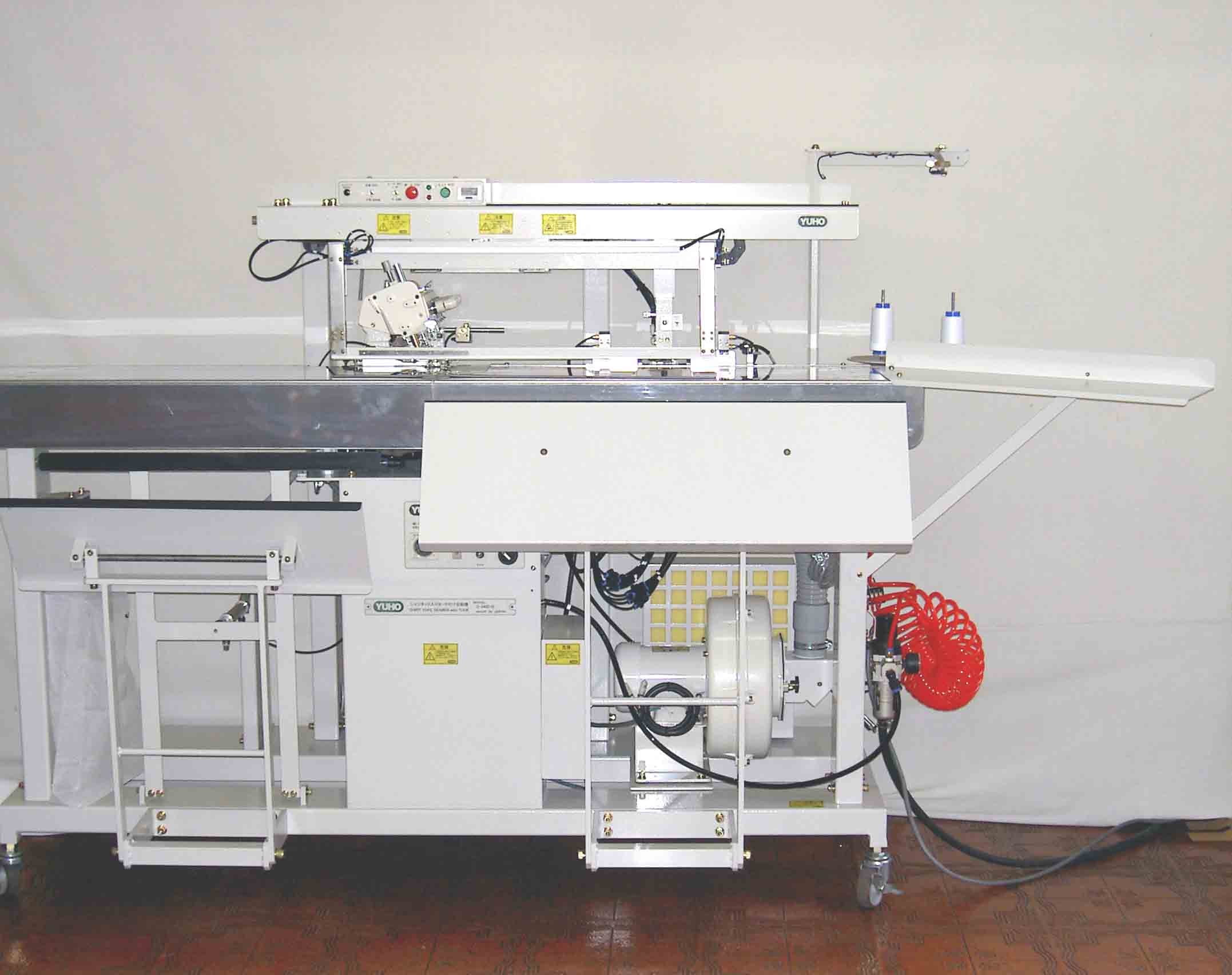

■ NEW SHIRT YOKE SEAMER with PLEATS U-2402-E ■
| |
HIGHLY SIMPLIFIED OPERATION, HIGH MACHINE SEWING SPEED,
HIGH PRODUCTIVITIES,HIGHLY CONSISTENT SEWING・・・・
PRESENTED BY YUHO NEW YOKE SEAMER !!
Avilable to make an accurate pleats width at the same location automatically
in the left/right side of back shirt fabric.
Sandwiched back fabric with two yoke pieces is pleated at both sides
or center part accurately and seamed sequecely.
| HIGH FLEXIBILITY FOR YOKE SEAMING WITH PLEATS | Completely, and sewn sandwiched two yoke pieces. Yoke seaming length is allowed upto 700㎜ for adults even for children. Sewing speed is adjustable from high to midium freely with selector switch. |

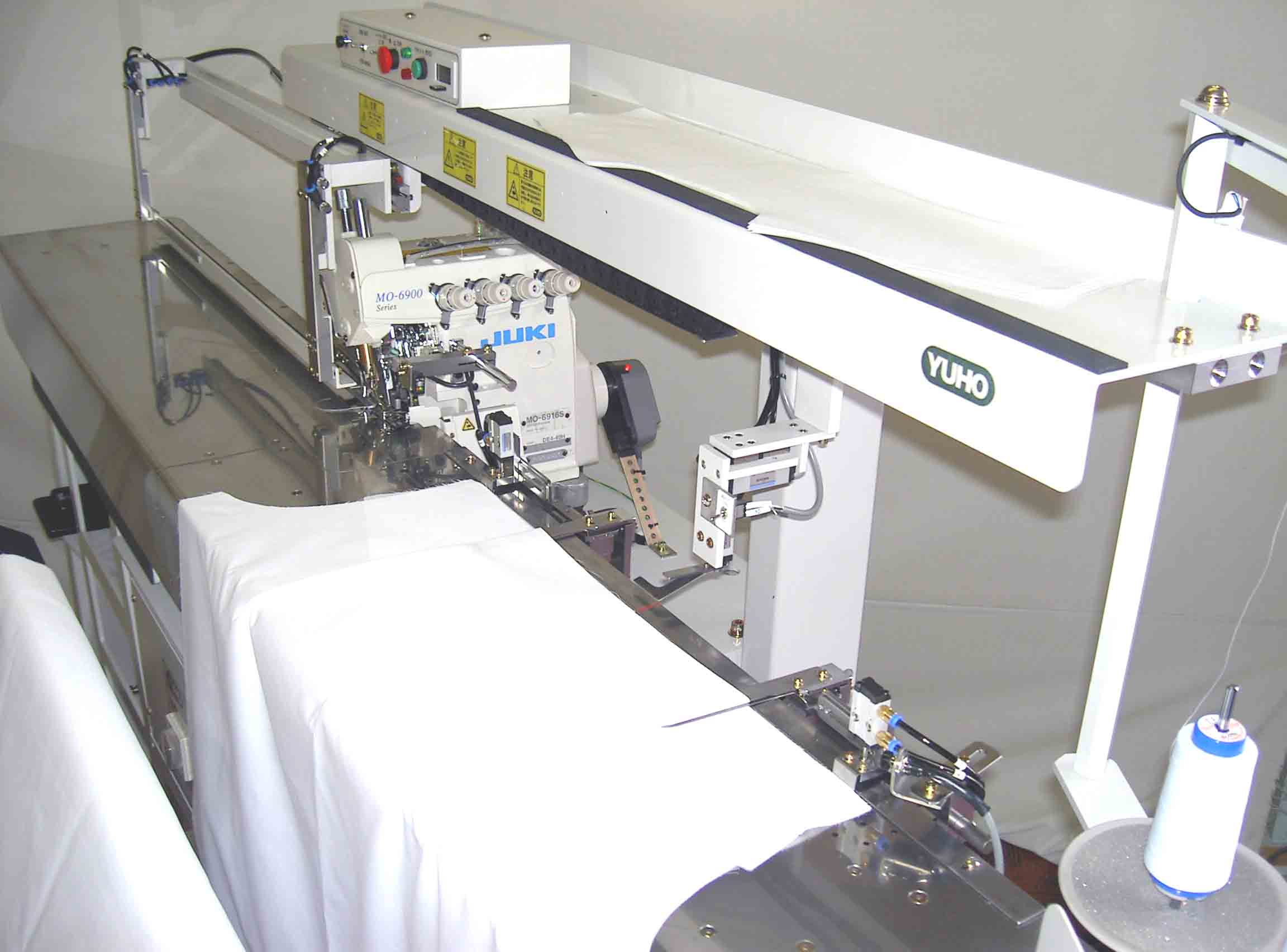

| CONSISTENT YOKE SEAMING | JUKI MO-6900S responds highly tensioned thrading and take-up mechanism
against 8000rpm (max) high speed. To avoid "Theading-off", finest thread and needle cooling device is also equiped. |
| YOKE PLEATING WITH CENTERLEFT/RIGHT& NONE PLEATING CONVERTIBLE WITH SWITCH | Automatically folded "Center・Left/Right pleating " is allowed separtely. Side pleating location is allowed to convert freely, and Left/Right pleating can be synchronised with yoke sizes. This ensures to make an accurate side pleating to all yoke sizes easily ! |
| STACKER SUPPORTS OVERLAPPED WORKING | NEW SHIRT YOKE SEAMER U-2402-E performs accurate pleats folding automatically,
and makes Chain-stitching with sandwiched back shirt with two yoke pieces. After thread trimming, back shirt is stacked on completely. Stacker supports to make over-lapped cycle sewing and high productivities ! |
| HIGH FLEXIBILITY TO SEWING PATTERNS & PLEAT SIZES | With conversion to yoke patterns and sizes, pleating location can be synchronized
freely. This is actually advantageous to "smaller lot production". Center pleat size: adjustable " 30㎜ ～ 40㎜ " freely Side pleat size: adjustable " 10㎜ ～ 20㎜ " freely |
| ATTACHING "CENTER" LOOP | Normally, casual shirt yokes demand "CENTER LOOP" attaching.
For this, "BASTING" is required. U-2402-E SHIRT YOKE SEAMER performs attaching "CENTER LOOP" together with yoke seaming at one time. This ensures labour cost saving remarkably. |
| ADVANTAGEOUS PERFORMANCE | Yoke gripper travels to left or to right according to yoke sizes. Powerful table vacuum suction supports accurate and quick fabric loading. Tray for yoke pieces and shirt are arranged to support high productivities greatly. Thread-stand is arranged at opertor side. |
※ OUTPUT
| with pleats | 1 cycle 17sec. 1,280 seam per 8H (20% allowance & loading) |
|---|---|
| without pleats | 1 cycle 12sec. 1,920 seam per 8H (20% allowance & griper travels to left/right) |
※ MAIN DEVICES
| 3 stages rail feeding speed select |
| Synchronized auto pleat folding (Center,Left/Right) |
| Left/Right pleat grippers |
| Center loop attaching |
| Removeable vacuum dumper |
| Machine presser inserting air |
| Chain-stitch trimmer |
| 700 ㎜ straight length selector SW. |
| Yoke piece & Back shirt tray |
| T. B. D. |
| Air gun |
| Thread stand |
